KL-0500-45 KA

Product information

SAC clutch set in plastic case
Suitable for SAC couplings (3 and 4 lochens) e.g. VW-Audi, BMW, Mercedes, Volvo, Opel, Renault etc.

Usage :

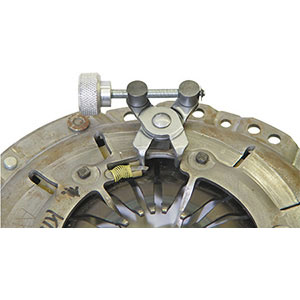

Before disassembly, the clutch pressure plate must be pre-tensioned using the pre-tensioning device:
- To do this, unscrew three mounting screws and screw three threaded rods into place. Place the pre-tensioner on the threaded ends and secure it with the knurled nuts.
- Screw the threaded rod of the pre-tensioner until the diaphragm has reached the stop.
- Unscrew the remaining mounting screws, loosen the diaphragm again and remove the preload and clutch pressure plate.
Center the clutch disc in the middle:
- Insert the centering tool with the clutch disc and the correct centering spanner into the flywheel.
Install the pressure plate:
- Place the pressure plate on the flywheel and install the pre-tensioning device as during disassembly.
- Tighten the diaphragm as far as it will go and screw in the mounting screws.

Advantages :
- Pre-tensioning of the clutch pressure plate during disassembly and assembly (essential to prevent the clutch from becoming deformed).
- Centering the clutch disc relative to the steering wheel bearing or to the clutch pressure plate. 10. Center the clutch disc.


Jeu d\'outils pour embrayage SAC, dans een coffret plastique
Pour les embrayages SAC (à 3 et 4 trous), par exemple, VW Audi, BMW, Mercedes, Volvo, Opel, Renault, etc.

Utilization :
Before the disassembly, before the plateau of the pressure is applied to the preparation of the preparation:
• Pour cela, dévisser trois vis de fixation et visser à leur place trois goujons filetés. Placer le dispositif de pretension sur les
goujons fillets et les fixer avec les écrous moletés.
• Visser is very sensitive to the pressure of the preparation due to the diaphragm of his attention.
• Dévisser les vis de fixation restantes, détendre de nouveau le diaphragme et demonter le dispositif de pretension et le
plateau de pression d\'embrayage.

Center for the disque d\'embrayage :
• Inserting the center with the disque d\'embrayage and the mandrin with the center adapted to the volant motor.

Monter le plateau de pression :
• Place the pressure plate on the volant engine and mount the preparation for the operation of the
disassembly.
• Tendre the diaphragm jusqu\'à la butée et visser les vis de fixation.

Advantages :
• Pretension of the plateau of the impression of the embrayage through the disassembly and the montage (essential for the appearance of the embrayage
ne soit gauchi).
• Centrage du disque d\'embrayage par rapport au roulement pilote ou par rapport au plateau de pression d\'embrayage.
